Description
fern fahrräder kaufen ALLYGN Diamond Back Rack & Pack – Fern BicyclesCustom made Gramm Tourpacking Diamond Back Pack can be ordered now. Please note all bags will be hand made to order and lead time is two weeks. Finally it's here! The ALLYGN Diamond Back Rack is a highly versatile, compact carrier that can be used for lighter loads, such as tents, sleeping bags, dry bags, and more. We only use the very best materials available, such as super thin walled, ultra light, and high strength seamless 25CrMo4 tubing. All

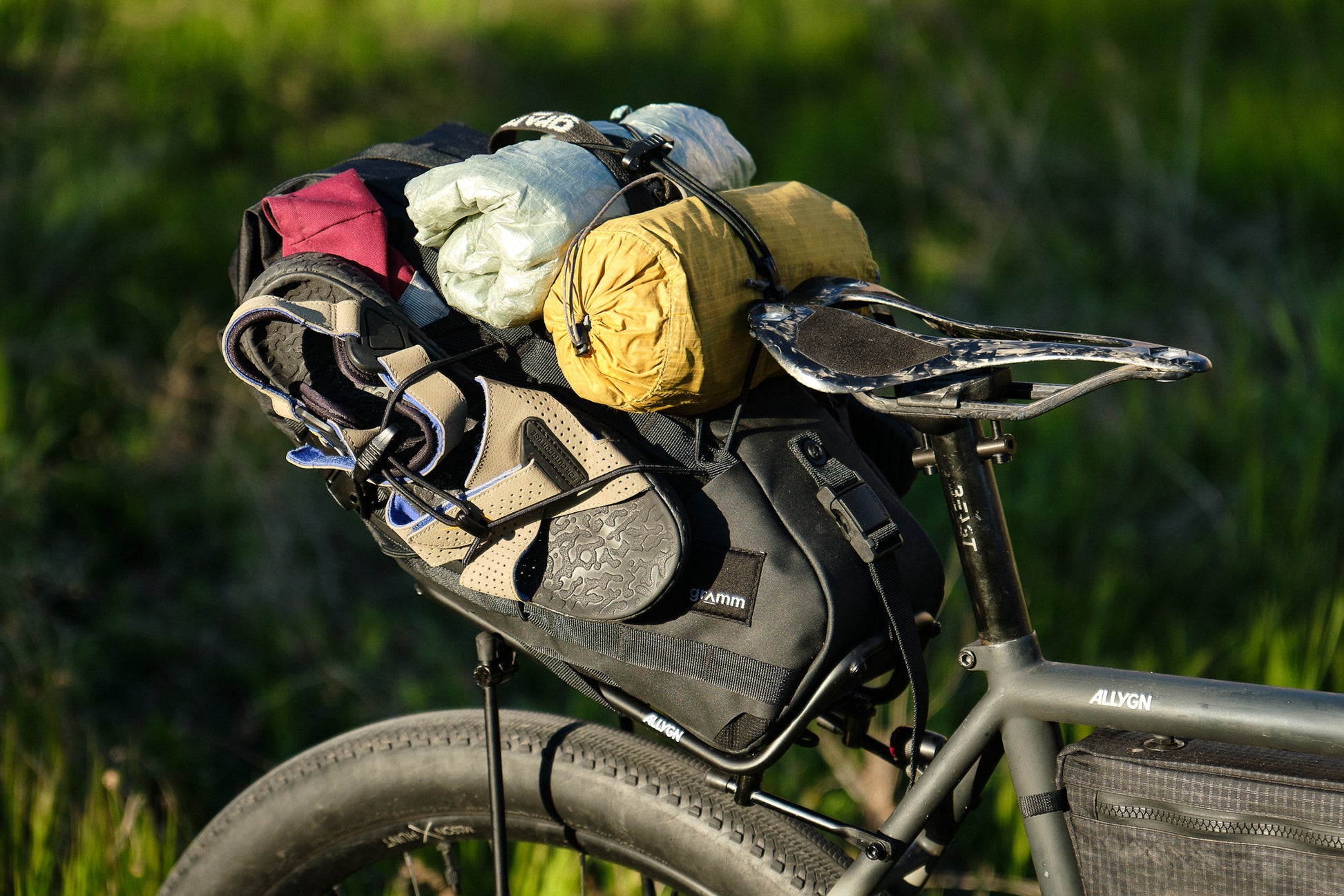

Custom made Gramm Tourpacking Diamond Back Pack can be ordered now. Please note all bags will be hand made to order and lead time is two weeks.
Finally it's here! The ALLYGN Diamond Back Rack is a highly versatile, compact carrier that can be used for lighter loads, such as tents, sleeping bags, dry bags, and more.
We only use the very best materials available, such as super thin-walled, ultra-light, and high-strength seamless 25CrMo4 tubing. All hardware is custom-made specifically for this rack, and we use rust-free, high-grade stainless steel. Each bolt is individually black zinc-nickel plated by hand.
This rack comes with a lot of hardware and can be mounted in various ways on almost any type of bike. We now also include a strip of custom-cut 10 mm wide 3M Helitape for additional rack and paint protection.
Taillights can be fitted with the optional ALLYGN Light Mounting Kit, and the ALLYGN Anybolts allow you to install our Micro Panniers, cargo, or bottle cages on the rear stays. When paired with the Gramm Diamond Back Pack, the rack serves as a rigid platform and can replace your classic seat bag. This rack also works perfectly with the Ortlieb 12L Bikepacking Dry Pack and many others.
FEATURES:
- Rack made from strong,
thin-wall 10 x 0,8mm seamless 25CrMo4 tubing - All bolts and hardware made from black plated rust-free stainless steel
- Aluminum rack stays
- Multiple mounting options
- 6 × M5 underside accessory mounts
- 3M Helitape for rack protection included
- Optional cage and light mounts
- Internal light cable routing
- Maximum load: 7 kg
- Weight:
Rack platform: 235 g
All stays (uncut): 195 g
Basic Mounting hardware: 75 g
Anybolt kit (optional): 80 g
Taillight mounting kit (optional): 15 g
INCLUDED PARTS:
Rear Diamond Rack and the complete basic mounting hardware.
1 x ALLYGN Diamond Back Rack
2 x Long stays, 480 mm
2 x Short stays, 270 mm
5 x Stay-end rubber plugs (1spare)
4 x M6 eyebolts
4 x Barrel washers
4 x M6 washers
4 x M6 nuts
4 x M5 x 16 mm bolts
4 x M5 washers
OPTIONAL HARDWARE:
Allygn Anybolt Kit
6 x M5 eye bolts
6 x Barrel washers
6 x M5 washers
6 x M5 nuts
Allygn Taillight Mounting Kit
2 x Light mount angle plate
2 x M5 x 12 mm bolt
2 x M5 washers
2 x M5 nuts
DIMENSIONS:
Length: 285mm
Usable platform length: 245mm
Widest width: 140mm
Stay mounting width center-center: 114mm
The Micro Pannier Racks and bags shown in some pictures are not included with this product. Additional mounting hardware shown in some pictures such as seat post rack mount clamps or seat stay P-clamps and adapters are available in a wide range from 3rd party manufacturers such as Nitto, Old Man Mountain, Micah Cycles, Problem Solvers, Salsa, Tubus and many others.
Check out the gear index review by Bikepacking.com
Check out the new 3M Helitape for extra rack protection! Other nice accessories are the Fern x Gramm Straps and the Rack Hooks .
Rack and all hardware parts made in Taiwan
You can download the manual and installation instructions right here.
